MRI Reconstruction
This guide demonstrates how to perform MRI reconstruction using torchlinops with three key components:
- NUFFT: Non-uniform Fast Fourier Transform for radial sampling
- Dense operator: Multi-coil sensitivity encoding
- Diagonal operator: Density compensation for radial trajectories
Problem Formulation
The MRI forward model can be written as:
\[y = E F S x + n\]
Where:
- \(S\): coil sensitivities (Dense operator)
- \(F\): NUFFT (non-uniform FFT)
- \(E\): density compensation (Diagonal operator)
- \(x\): image to reconstruct
- \(y\): acquired k-space data
- \(n\): noise
The reconstruction solves the least-squares problem:
\[\min_x \|A x - y\|_2^2\]
where \(A = E F S\) is the combined forward operator.
Setup and Imports
import sys
import warnings
import matplotlib.pyplot as plt
import torch
from torchlinops import NUFFT, Dense, Diagonal, Dim
from torchlinops.alg import conjugate_gradients, power_method
# Set random seed for reproducibility
torch.manual_seed(42)
# Ignore warnings
warnings.filterwarnings("ignore", message=r".*FigureCanvasAgg.*")
# Reconstruction parameters
image_size = (128, 128) # 2D image dimensions
num_coils = 8 # Number of receiver coils
num_spokes = 37 # Number of radial spokes
num_readouts = 256 # Readout points per spoke
noise_level = 1e-5 # Additive noise level
use_cartesian = False # Use Cartesian trajectory for debugging
Helper Functions
We define the helper functions here for generating trajectories, sensitivities, and density compensation weights.
def generate_radial_trajectory(num_spokes, num_readouts, grid_size):
"""Generate radial k-space trajectory.
Parameters
----------
num_spokes : int
Number of radial spokes
num_readouts : int
Number of readout points per spoke
grid_size : tuple
Image grid size (Nx, Ny)
Returns
-------
torch.Tensor
K-space locations with shape (num_spokes * num_readouts, 2)
"""
Nx, Ny = grid_size
max_radius = min(Nx, Ny) // 2
# Generate angles for each spoke (evenly distributed around circle)
# Note: endpoint=False not available in older PyTorch, so we exclude last point manually
angles = torch.linspace(0, 2 * torch.pi, num_spokes + 1)[:-1]
# Generate readout positions (from -max_radius to +max_radius)
readout_pos = torch.linspace(-max_radius, max_radius, num_readouts)
# Initialize trajectory
locs = torch.zeros(num_spokes * num_readouts, 2)
# Fill trajectory
for i, angle in enumerate(angles):
start_idx = i * num_readouts
end_idx = (i + 1) * num_readouts
# Convert to Cartesian coordinates
x = readout_pos * torch.cos(angle)
y = readout_pos * torch.sin(angle)
locs[start_idx:end_idx, 0] = x
locs[start_idx:end_idx, 1] = y
# Normalize to [-0.5, 0.5] range (standard for NUFFT)
locs = locs / (2 * max_radius)
return locs
def generate_cartesian_trajectory(grid_size, oversamp=2.0):
"""Generate Cartesian k-space trajectory.
Parameters
----------
grid_size : tuple
Image grid size (Nx, Ny)
Returns
-------
torch.Tensor
K-space locations with shape (Nx * Ny, 2)
"""
Nx, Ny = grid_size
x = torch.linspace(-0.5, 0.5, int(Nx * oversamp))
y = torch.linspace(-0.5, 0.5, int(Ny * oversamp))
X, Y = torch.meshgrid(x, y, indexing="ij")
locs = torch.stack([X.flatten(), Y.flatten()], dim=1)
return locs
def generate_gaussian_coil_sensitivities(grid_size, num_coils):
"""Generate Gaussian coil sensitivity maps.
Parameters
----------
grid_size : tuple
Image grid size (Nx, Ny)
num_coils : int
Number of receiver coils
Returns
-------
torch.Tensor
Coil sensitivity maps with shape (num_coils, Nx, Ny)
"""
Nx, Ny = grid_size
# Create coordinate grids
x = torch.linspace(-0.5, 0.5, Nx)
y = torch.linspace(-0.5, 0.5, Ny)
X, Y = torch.meshgrid(x, y, indexing="ij")
# Initialize coil sensitivities
coil_sens = torch.zeros(num_coils, Nx, Ny, dtype=torch.complex64)
# Generate Gaussian sensitivities with different centers
for c in range(num_coils):
# Place coil centers around the image in a circular pattern
angle = 2 * torch.pi * c / num_coils
center_x = 0.3 * torch.cos(torch.tensor(angle))
center_y = 0.3 * torch.sin(torch.tensor(angle))
# Create Gaussian sensitivity profile
sigma = 1.0 # Width of Gaussian
gaussian = torch.exp(
-((X - center_x) ** 2 + (Y - center_y) ** 2) / (2 * sigma**2)
)
# Add phase variation for more realistic coil sensitivities
phase = torch.exp(1j * 2 * torch.pi * (0.1 * X + 0.1 * Y))
coil_sens[c] = gaussian * phase
return coil_sens
def analytic_radial_dcf(locs):
"""Compute analytic density compensation for radial trajectories.
Parameters
----------
locs : torch.Tensor
K-space locations with shape (N, 2)
Returns
-------
torch.Tensor
Density compensation weights with shape (N,)
"""
# Compute radius for each k-space location
radius = torch.sqrt(locs[:, 0] ** 2 + locs[:, 1] ** 2)
# For radial trajectories, density is proportional to radius
# This is because outer regions have fewer samples per unit area
# The analytic DCF for radial is: dcf = radius
# We add a small constant to avoid division by zero at center
dcf = radius + 1e-6
# Normalize to have unit mean
dcf = dcf / torch.mean(dcf)
return dcf
def analytic_cartesian_dcf(locs):
"""Compute analytic density compensation for Cartesian trajectory.
Parameters
----------
locs : torch.Tensor
K-space locations
Returns
-------
torch.Tensor
Density compensation weights (all ones)
"""
return torch.ones(locs.shape[0])
def exact_dft(image, locs):
"""Compute exact Discrete Fourier Transform.
Parameters
----------
image : torch.Tensor
Input image with shape (..., Nx, Ny)
locs : torch.Tensor
K-space locations with shape (Nk, 2) in [-0.5, 0.5]
Returns
-------
torch.Tensor
K-space data with shape (..., Nk)
"""
*batch_dims, Nx, Ny = image.shape
Nk = locs.shape[0]
# Flatten image spatial dimensions
image_flat = image.reshape(*batch_dims, -1) # (..., Nx*Ny)
# Generate spatial coordinates
# Note: Use same convention as NUFFT (centered grid)
x = torch.linspace(-0.5, 0.5, Nx, device=image.device)
y = torch.linspace(-0.5, 0.5, Ny, device=image.device)
X, Y = torch.meshgrid(x, y, indexing="ij")
r = torch.stack([X.flatten(), Y.flatten()], dim=1) # (Nx*Ny, 2)
r = r.to(image.dtype) # Ensure type match
# Compute DFT in chunks to save memory
kspace_data = torch.zeros(*batch_dims, Nk, dtype=image.dtype, device=image.device)
chunk_size = 4096
for i in range(0, Nk, chunk_size):
end = min(i + chunk_size, Nk)
k_chunk = locs[i:end] # (Chunk, 2)
# Compute phase: -2*pi*i * (k . r)
# k: (Chunk, 2), r: (Pixels, 2) -> (Chunk, Pixels)
# Cast to complex64/128 for phase calculation
phase = -2j * torch.pi * (k_chunk.to(image.dtype) @ r.T)
fourier_kernel = torch.exp(phase) # (Chunk, Pixels)
# Apply kernel: sum over pixels
# image_flat: (..., Pixels), kernel: (Chunk, Pixels)
# result: (..., Chunk)
kspace_chunk = image_flat @ fourier_kernel.T
kspace_data[..., i:end] = kspace_chunk
return kspace_data
Generate Ground Truth Image
# Create a simple circular phantom image
Nx, Ny = image_size
x_true = torch.zeros(Nx, Ny, dtype=torch.complex64)
center_x, center_y = Nx // 2, Ny // 2
for i in range(Nx):
for j in range(Ny):
if (i - center_x) ** 2 + (j - center_y) ** 2 < 33**2:
x_true[i, j] = 1.0
print(f"Ground truth image shape: {x_true.shape}")

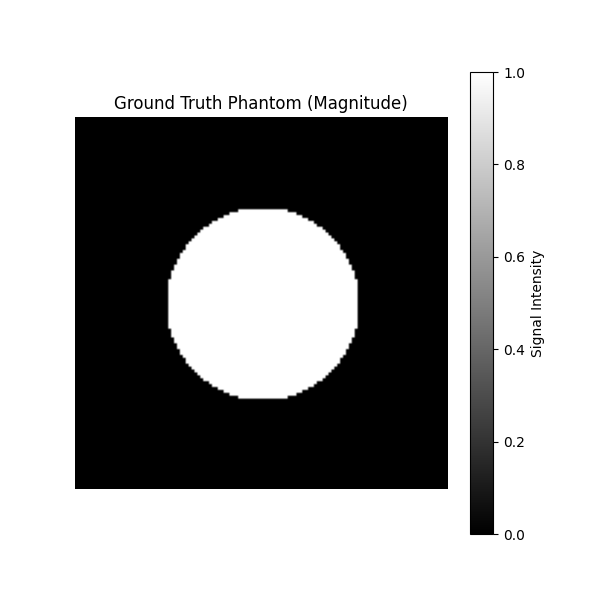

# Visualize Ground Truth
plt.figure(figsize=(6, 6))
plt.imshow(torch.abs(x_true), cmap="gray", vmin=0, vmax=1)
plt.title("Ground Truth Phantom (Magnitude)")
plt.colorbar(label="Signal Intensity")
plt.axis("off")
plt.show()
Out:
Ground truth image shape: torch.Size([128, 128])
/home/runner/work/torch-named-linops/torch-named-linops/.venv/lib/python3.12/site-packages/matplotlib/cbook.py:684: DeprecationWarning: __array__ implementation doesn't accept a copy keyword, so passing copy=False failed. __array__ must implement 'dtype' and 'copy' keyword arguments. To learn more, see the migration guide https://numpy.org/devdocs/numpy_2_0_migration_guide.html#adapting-to-changes-in-the-copy-keyword
x = np.array(x, subok=True, copy=copy)
Component 1: Radial Trajectory and NUFFT
# Generate k-space trajectory
if use_cartesian:
locs = generate_cartesian_trajectory(image_size)
print(f"Trajectory shape (Cartesian): {locs.shape}")
else:
locs = generate_radial_trajectory(num_spokes, num_readouts, image_size)
print(f"Trajectory shape (Radial): {locs.shape}")

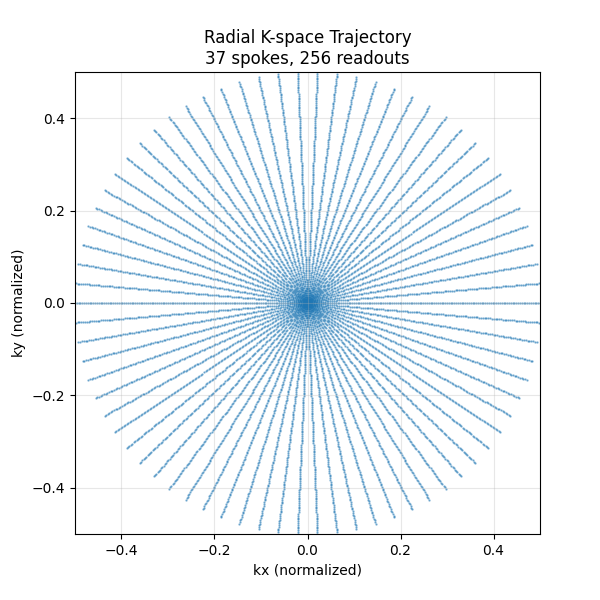

# Visualize Trajectory
plt.figure(figsize=(6, 6))
plt.scatter(locs[:, 0], locs[:, 1], s=0.5, alpha=0.5)
if use_cartesian:
plt.title(f"Cartesian K-space Trajectory\n{len(locs)} points")
else:
plt.title(
f"Radial K-space Trajectory\n{num_spokes} spokes, {num_readouts} readouts"
)
plt.xlabel("kx (normalized)")
plt.ylabel("ky (normalized)")
plt.xlim(-0.5, 0.5)
plt.ylim(-0.5, 0.5)
plt.grid(True, alpha=0.3)
plt.show()
# Scale locs to -N//2, N//2 for NUFFT
locs = locs * torch.tensor(image_size, dtype=locs.dtype)
# Create NUFFT operator
nufft_op = NUFFT(
locs=locs,
grid_size=image_size,
output_shape=Dim("R"), # Readout dimension
input_shape=Dim("NxNy"),
batch_shape=Dim("C"),
oversamp=2.0,
width=6.0,
)
# Test forward and adjoint operations
# test_image = torch.randn(*image_size, dtype=torch.complex64)
# kspace_test = nufft_op(test_image)
# image_test_adj = nufft_op.H(kspace_test)
# print(f"Forward: {test_image.shape} -> {kspace_test.shape}")
# print(f"Adjoint: {kspace_test.shape} -> {image_test_adj.shape}")
Out:
Component 2: Coil Sensitivities (Diagonal Operator)
# Generate Gaussian coil sensitivity maps
coil_sens = generate_gaussian_coil_sensitivities(image_size, num_coils)
print(f"Coil sensitivities shape: {coil_sens.shape}") # Should be (num_coils, Nx, Ny)

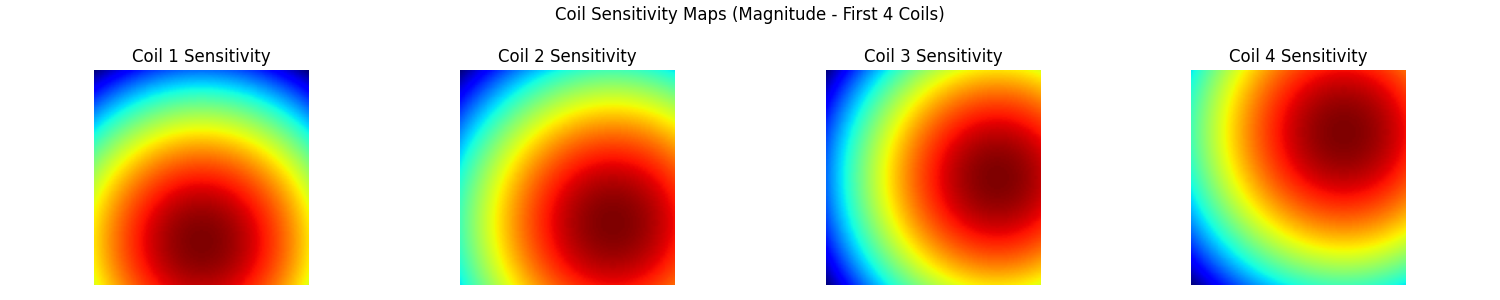

# Visualize Coil Sensitivities
plt.figure(figsize=(15, 3))
for i in range(min(4, num_coils)):
plt.subplot(1, 4, i + 1)
plt.imshow(torch.abs(coil_sens[i]), cmap="jet")
plt.title(f"Coil {i + 1} Sensitivity")
plt.axis("off")
plt.suptitle("Coil Sensitivity Maps (Magnitude - First 4 Coils)")
plt.tight_layout()
plt.show()
# Create Dense operator for coil encoding
coil_op = Dense(
weight=coil_sens,
weightshape=Dim("CNxNy"), # Coil × Image dimensions
ishape=Dim("NxNy"), # Input image dimensions
oshape=Dim("CNxNy"), # Output multi-coil image dimensions
)
# Test coil encoding
# multi_coil_image = coil_op(x_true)
# print(f"Coil encoding: {x_true.shape} -> {multi_coil_image.shape}")
Out:
Coil sensitivities shape: torch.Size([8, 128, 128])
/home/runner/work/torch-named-linops/torch-named-linops/.venv/lib/python3.12/site-packages/matplotlib/cbook.py:684: DeprecationWarning: __array__ implementation doesn't accept a copy keyword, so passing copy=False failed. __array__ must implement 'dtype' and 'copy' keyword arguments. To learn more, see the migration guide https://numpy.org/devdocs/numpy_2_0_migration_guide.html#adapting-to-changes-in-the-copy-keyword
x = np.array(x, subok=True, copy=copy)
Component 3: Density Compensation (Diagonal Operator)
# Compute analytic density compensation
if use_cartesian:
dcf_weights = analytic_cartesian_dcf(locs)
else:
dcf_weights = analytic_radial_dcf(locs)
print(f"Density weights shape: {dcf_weights.shape}")

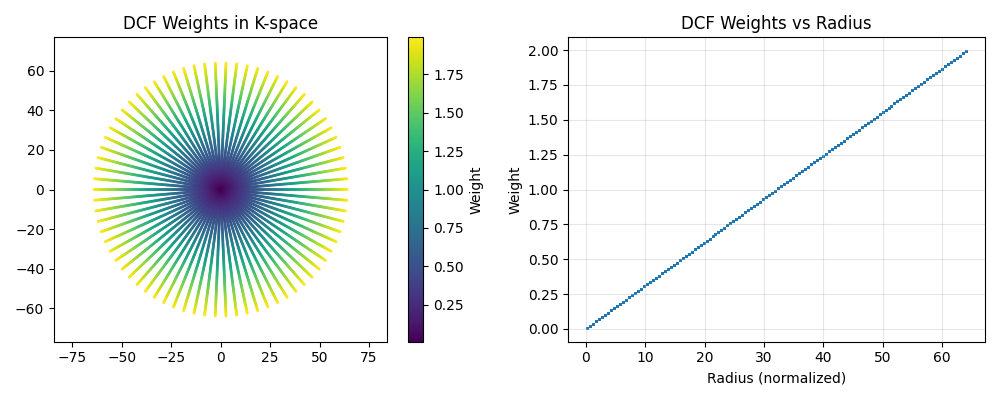

# Visualize Density Compensation Weights
plt.figure(figsize=(10, 4))
plt.subplot(1, 2, 1)
plt.scatter(locs[:, 0], locs[:, 1], c=dcf_weights, s=1, cmap="viridis")
plt.title("DCF Weights in K-space")
plt.colorbar(label="Weight")
plt.axis("equal")
plt.subplot(1, 2, 2)
# Plot weights vs radius to verify radial dependency
radius = torch.sqrt(locs[:, 0] ** 2 + locs[:, 1] ** 2)
plt.scatter(radius, dcf_weights, s=1, alpha=0.5)
plt.title("DCF Weights vs Radius")
plt.xlabel("Radius (normalized)")
plt.ylabel("Weight")
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
# Create Diagonal operator for density compensation
# Diagonal is used because density compensation is element-wise multiplication
density_op = Diagonal(
weight=dcf_weights,
ioshape=Dim("CR"), # Same as NUFFT output shape
)
# Test density compensation
# kspace_compensated = density_op(kspace_test)
# print(f"Density compensation: {kspace_test.shape} -> {kspace_compensated.shape}")
Out:
Complete Forward Model
# Simulate k-space data from ground truth image
# We use exact DFT simulation to avoid inverse crimes
multi_coil_image = coil_op(x_true)
print("Simulating forward model using exact DFT...")
kspace_data = exact_dft(multi_coil_image, locs)
# Add realistic noise
noise = torch.randn_like(kspace_data) * noise_level
kspace_noisy = kspace_data + noise
print(f"Forward model: {x_true.shape} -> {kspace_noisy.shape}")
print(
f"Data SNR estimate: {20 * torch.log10(torch.norm(kspace_data) / torch.norm(noise)):.1f} dB"
)
Out:
Simulating forward model using exact DFT...
Forward model: torch.Size([128, 128]) -> torch.Size([8, 9472])
Data SNR estimate: 152.2 dB
Iterative Reconstruction
# Combine all operators: A = density_comp @ nufft @ coil_sens
A = (density_op ** (1 / 2)) @ nufft_op @ coil_op
# Normalize for numerical purposes
_, eigenval = power_method(A.N, torch.ones_like(x_true), tqdm_kwargs=dict(leave=False))
A = ((1 / (1.01 * eigenval)) ** 0.5) * A
# Apply density compensation to y
y = (density_op ** (1 / 2))(kspace_noisy)
# Compute RHS: A^H y
rhs = A.H(y)
rhs = rhs / torch.linalg.vector_norm(rhs)

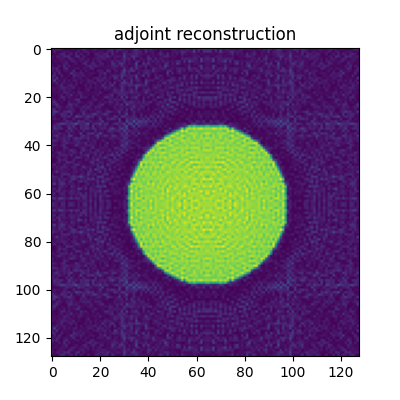

plt.figure(figsize=(4, 4))
plt.imshow(torch.abs(rhs).cpu())
plt.title("adjoint reconstruction")
plt.show()
# Solve A^H A x = A^H y using conjugate gradients
# Note: A_normal is a NamedLinop which is callable, so we can pass it directly
x_recon = conjugate_gradients(
A=A.N, y=rhs, max_num_iters=50, gtol=1e-4, tqdm_kwargs=dict(leave=False)
)
# Rescale recon to scale of x_true
if x_recon is not None:
x_recon = x_recon * torch.max(x_true.abs()) / torch.max(x_recon.abs())
else:
print(f"Reconstruction diverged.")
sys.exit()
print(f"Reconstruction shape: {x_recon.shape}")
print(f"Ground truth shape: {x_true.shape}")
# Compute reconstruction error
recon_error = torch.norm(x_recon - x_true) / torch.norm(x_true)
print(f"Relative reconstruction error: {recon_error:.4f}")

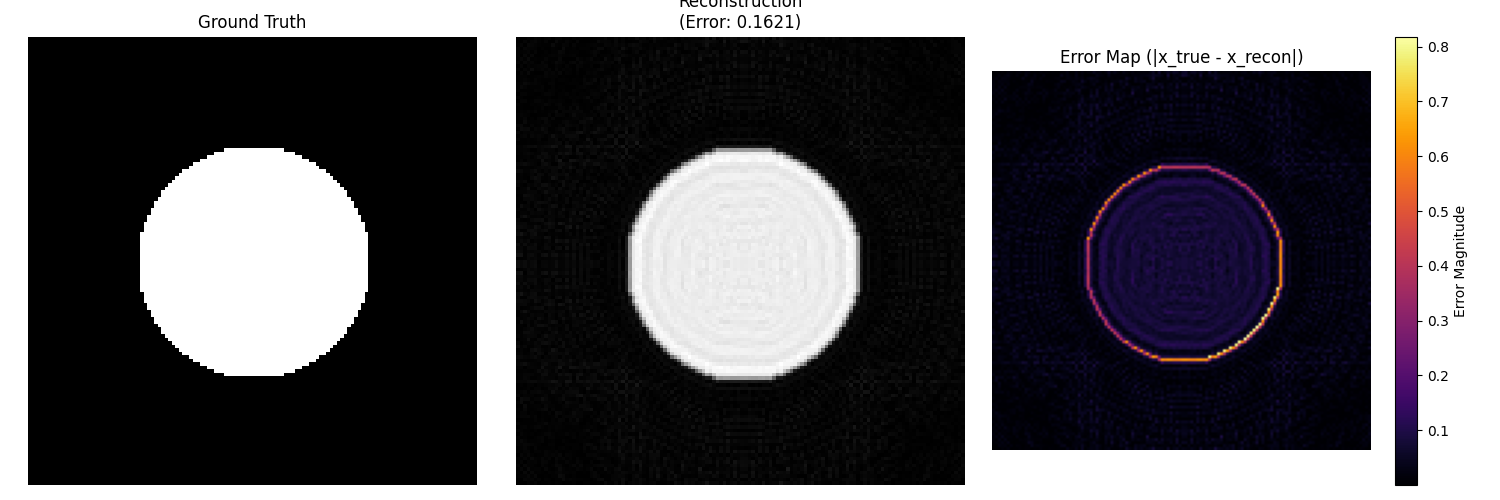

# Visualize Reconstruction
plt.figure(figsize=(15, 5))
# Ground Truth
plt.subplot(1, 3, 1)
plt.imshow(torch.abs(x_true), cmap="gray", vmin=0, vmax=1)
plt.title("Ground Truth")
plt.axis("off")
# Reconstruction
plt.subplot(1, 3, 2)
plt.imshow(torch.abs(x_recon), cmap="gray", vmin=0, vmax=1)
plt.title(f"Reconstruction\n(Error: {recon_error:.4f})")
plt.axis("off")
# Error Map
plt.subplot(1, 3, 3)
error_map = torch.abs(x_true - x_recon)
plt.imshow(error_map, cmap="inferno")
plt.title("Error Map (|x_true - x_recon|)")
plt.colorbar(label="Error Magnitude")
plt.axis("off")
plt.tight_layout()
plt.show()
Out:
Power Method: 0%| | 0/50 [00:00<?, ?it/s]
Power Method: 0%| | 0/50 [00:11<?, ?it/s, rdiff=0.961, e_val=4.99]
Power Method: 2%|2 | 1/50 [00:11<09:11, 11.26s/it, rdiff=0.961, e_val=4.99]
Power Method: 2%|2 | 1/50 [00:11<09:11, 11.26s/it, rdiff=0.0621, e_val=5.3]
Power Method: 2%|2 | 1/50 [00:11<09:11, 11.26s/it, rdiff=0.364, e_val=7.23]
Power Method: 6%|6 | 3/50 [00:11<02:19, 2.97s/it, rdiff=0.364, e_val=7.23]
Power Method: 6%|6 | 3/50 [00:11<02:19, 2.97s/it, rdiff=1.37, e_val=17.2]
Power Method: 6%|6 | 3/50 [00:11<02:19, 2.97s/it, rdiff=0.76, e_val=30.2]
Power Method: 10%|# | 5/50 [00:11<01:06, 1.48s/it, rdiff=0.76, e_val=30.2]
Power Method: 10%|# | 5/50 [00:11<01:06, 1.48s/it, rdiff=0.179, e_val=35.6]
Power Method: 10%|# | 5/50 [00:11<01:06, 1.48s/it, rdiff=0.0457, e_val=37.2]
Power Method: 14%|#4 | 7/50 [00:11<00:38, 1.13it/s, rdiff=0.0457, e_val=37.2]
Power Method: 14%|#4 | 7/50 [00:11<00:38, 1.13it/s, rdiff=0.0124, e_val=37.7]
Power Method: 14%|#4 | 7/50 [00:11<00:38, 1.13it/s, rdiff=0.00367, e_val=37.8]
Power Method: 18%|#8 | 9/50 [00:11<00:23, 1.72it/s, rdiff=0.00367, e_val=37.8]
Power Method: 18%|#8 | 9/50 [00:11<00:23, 1.72it/s, rdiff=0.00124, e_val=37.9]
Power Method: 18%|#8 | 9/50 [00:12<00:23, 1.72it/s, rdiff=0.000482, e_val=37.9]
Power Method: 22%|##2 | 11/50 [00:12<00:15, 2.48it/s, rdiff=0.000482, e_val=37.9]
Power Method: 22%|##2 | 11/50 [00:12<00:15, 2.48it/s, rdiff=0.000212, e_val=37.9]
Power Method: 22%|##2 | 11/50 [00:12<00:15, 2.48it/s, rdiff=0.000115, e_val=37.9]
Power Method: 26%|##6 | 13/50 [00:12<00:10, 3.40it/s, rdiff=0.000115, e_val=37.9]
Power Method: 26%|##6 | 13/50 [00:12<00:10, 3.40it/s, rdiff=5.94e-5, e_val=37.9]
Power Method: 26%|##6 | 13/50 [00:12<00:10, 3.40it/s, rdiff=3.75e-5, e_val=37.9]
Power Method: 30%|### | 15/50 [00:12<00:07, 4.44it/s, rdiff=3.75e-5, e_val=37.9]
Power Method: 30%|### | 15/50 [00:12<00:07, 4.44it/s, rdiff=2.64e-5, e_val=37.9]
Power Method: 30%|### | 15/50 [00:12<00:07, 4.44it/s, rdiff=1.43e-5, e_val=37.9]
Power Method: 34%|###4 | 17/50 [00:12<00:05, 5.63it/s, rdiff=1.43e-5, e_val=37.9]
Power Method: 34%|###4 | 17/50 [00:12<00:05, 5.63it/s, rdiff=1.48e-5, e_val=37.9]
Power Method: 34%|###4 | 17/50 [00:12<00:05, 5.63it/s, rdiff=7.44e-6, e_val=37.9]
/home/runner/work/torch-named-linops/torch-named-linops/.venv/lib/python3.12/site-packages/matplotlib/cbook.py:684: DeprecationWarning: __array__ implementation doesn't accept a copy keyword, so passing copy=False failed. __array__ must implement 'dtype' and 'copy' keyword arguments. To learn more, see the migration guide https://numpy.org/devdocs/numpy_2_0_migration_guide.html#adapting-to-changes-in-the-copy-keyword
x = np.array(x, subok=True, copy=copy)
CG: 0%| | 0/50 [00:00<?, ?it/s]
CG: 0%| | 0/50 [00:00<?, ?it/s, ldiff=6.6, gnorm=0.484]
CG: 2%|2 | 1/50 [00:00<00:07, 6.74it/s, ldiff=6.6, gnorm=0.484]
CG: 2%|2 | 1/50 [00:00<00:07, 6.74it/s, ldiff=0.437, gnorm=0.121]
CG: 4%|4 | 2/50 [00:00<00:07, 6.75it/s, ldiff=0.437, gnorm=0.121]
CG: 4%|4 | 2/50 [00:00<00:07, 6.75it/s, ldiff=0.0308, gnorm=0.0396]
CG: 6%|6 | 3/50 [00:00<00:06, 6.73it/s, ldiff=0.0308, gnorm=0.0396]
CG: 6%|6 | 3/50 [00:00<00:06, 6.73it/s, ldiff=0.00333, gnorm=0.0179]
CG: 8%|8 | 4/50 [00:00<00:06, 6.70it/s, ldiff=0.00333, gnorm=0.0179]
CG: 8%|8 | 4/50 [00:00<00:06, 6.70it/s, ldiff=0.000994, gnorm=0.0121]
CG: 10%|# | 5/50 [00:00<00:06, 6.70it/s, ldiff=0.000994, gnorm=0.0121]
CG: 10%|# | 5/50 [00:00<00:06, 6.70it/s, ldiff=0.000345, gnorm=0.00626]
CG: 12%|#2 | 6/50 [00:00<00:06, 6.69it/s, ldiff=0.000345, gnorm=0.00626]
CG: 12%|#2 | 6/50 [00:01<00:06, 6.69it/s, ldiff=7.72e-5, gnorm=0.00324]
CG: 14%|#4 | 7/50 [00:01<00:06, 6.68it/s, ldiff=7.72e-5, gnorm=0.00324]
CG: 14%|#4 | 7/50 [00:01<00:06, 6.68it/s, ldiff=2.57e-5, gnorm=0.00206]
CG: 16%|#6 | 8/50 [00:01<00:06, 6.69it/s, ldiff=2.57e-5, gnorm=0.00206]
CG: 16%|#6 | 8/50 [00:01<00:06, 6.69it/s, ldiff=1.43e-5, gnorm=0.00138]
CG: 18%|#8 | 9/50 [00:01<00:06, 6.67it/s, ldiff=1.43e-5, gnorm=0.00138]
CG: 18%|#8 | 9/50 [00:01<00:06, 6.67it/s, ldiff=9.06e-6, gnorm=0.00171]
CG: 20%|## | 10/50 [00:01<00:05, 6.69it/s, ldiff=9.06e-6, gnorm=0.00171]
CG: 20%|## | 10/50 [00:01<00:05, 6.69it/s, ldiff=1.43e-5, gnorm=0.00138]
CG: 22%|##2 | 11/50 [00:01<00:05, 6.71it/s, ldiff=1.43e-5, gnorm=0.00138]
CG: 22%|##2 | 11/50 [00:01<00:05, 6.71it/s, ldiff=8.11e-6, gnorm=0.00126]
CG: 24%|##4 | 12/50 [00:01<00:05, 6.72it/s, ldiff=8.11e-6, gnorm=0.00126]
CG: 24%|##4 | 12/50 [00:01<00:05, 6.72it/s, ldiff=5.25e-6, gnorm=0.00122]
CG: 26%|##6 | 13/50 [00:01<00:05, 6.72it/s, ldiff=5.25e-6, gnorm=0.00122]
CG: 26%|##6 | 13/50 [00:02<00:05, 6.72it/s, ldiff=6.2e-6, gnorm=0.00122]
CG: 28%|##8 | 14/50 [00:02<00:05, 6.72it/s, ldiff=6.2e-6, gnorm=0.00122]
CG: 28%|##8 | 14/50 [00:02<00:05, 6.72it/s, ldiff=5.25e-6, gnorm=0.00114]
CG: 30%|### | 15/50 [00:02<00:05, 6.72it/s, ldiff=5.25e-6, gnorm=0.00114]
CG: 30%|### | 15/50 [00:02<00:05, 6.72it/s, ldiff=5.25e-6, gnorm=0.00117]
CG: 32%|###2 | 16/50 [00:02<00:05, 6.72it/s, ldiff=5.25e-6, gnorm=0.00117]
CG: 32%|###2 | 16/50 [00:02<00:05, 6.72it/s, ldiff=6.2e-6, gnorm=0.00126]
CG: 34%|###4 | 17/50 [00:02<00:04, 6.73it/s, ldiff=6.2e-6, gnorm=0.00126]
CG: 34%|###4 | 17/50 [00:02<00:04, 6.73it/s, ldiff=7.63e-6, gnorm=0.00127]
CG: 36%|###6 | 18/50 [00:02<00:04, 6.73it/s, ldiff=7.63e-6, gnorm=0.00127]
CG: 36%|###6 | 18/50 [00:02<00:04, 6.73it/s, ldiff=7.15e-6, gnorm=0.00113]
CG: 38%|###8 | 19/50 [00:02<00:04, 6.75it/s, ldiff=7.15e-6, gnorm=0.00113]
CG: 38%|###8 | 19/50 [00:02<00:04, 6.75it/s, ldiff=5.72e-6, gnorm=0.00109]
CG: 40%|#### | 20/50 [00:02<00:04, 6.76it/s, ldiff=5.72e-6, gnorm=0.00109]
CG: 40%|#### | 20/50 [00:03<00:04, 6.76it/s, ldiff=5.25e-6, gnorm=0.0011]
CG: 42%|####2 | 21/50 [00:03<00:04, 6.76it/s, ldiff=5.25e-6, gnorm=0.0011]
CG: 42%|####2 | 21/50 [00:03<00:04, 6.76it/s, ldiff=5.72e-6, gnorm=0.000953]
CG: 44%|####4 | 22/50 [00:03<00:04, 6.77it/s, ldiff=5.72e-6, gnorm=0.000953]
CG: 44%|####4 | 22/50 [00:03<00:04, 6.77it/s, ldiff=3.34e-6, gnorm=0.000835]
CG: 46%|####6 | 23/50 [00:03<00:04, 6.74it/s, ldiff=3.34e-6, gnorm=0.000835]
CG: 46%|####6 | 23/50 [00:03<00:04, 6.74it/s, ldiff=2.38e-6, gnorm=0.000788]
CG: 48%|####8 | 24/50 [00:03<00:03, 6.75it/s, ldiff=2.38e-6, gnorm=0.000788]
CG: 48%|####8 | 24/50 [00:03<00:03, 6.75it/s, ldiff=3.34e-6, gnorm=0.000778]
CG: 50%|##### | 25/50 [00:03<00:03, 6.76it/s, ldiff=3.34e-6, gnorm=0.000778]
CG: 50%|##### | 25/50 [00:03<00:03, 6.76it/s, ldiff=2.86e-6, gnorm=0.000659]
CG: 52%|#####2 | 26/50 [00:03<00:03, 6.74it/s, ldiff=2.86e-6, gnorm=0.000659]
CG: 52%|#####2 | 26/50 [00:04<00:03, 6.74it/s, ldiff=1.91e-6, gnorm=0.0006]
CG: 54%|#####4 | 27/50 [00:04<00:03, 6.73it/s, ldiff=1.91e-6, gnorm=0.0006]
CG: 54%|#####4 | 27/50 [00:04<00:03, 6.73it/s, ldiff=2.38e-6, gnorm=0.000596]
CG: 56%|#####6 | 28/50 [00:04<00:03, 6.74it/s, ldiff=2.38e-6, gnorm=0.000596]
CG: 56%|#####6 | 28/50 [00:04<00:03, 6.74it/s, ldiff=0, gnorm=0.000584]
CG: 58%|#####8 | 29/50 [00:04<00:03, 6.75it/s, ldiff=0, gnorm=0.000584]
CG: 58%|#####8 | 29/50 [00:04<00:03, 6.75it/s, ldiff=2.38e-6, gnorm=0.000558]
CG: 60%|###### | 30/50 [00:04<00:02, 6.76it/s, ldiff=2.38e-6, gnorm=0.000558]
CG: 60%|###### | 30/50 [00:04<00:02, 6.76it/s, ldiff=9.54e-7, gnorm=0.000554]
CG: 62%|######2 | 31/50 [00:04<00:02, 6.77it/s, ldiff=9.54e-7, gnorm=0.000554]
CG: 62%|######2 | 31/50 [00:04<00:02, 6.77it/s, ldiff=2.86e-6, gnorm=0.000608]
CG: 64%|######4 | 32/50 [00:04<00:02, 6.77it/s, ldiff=2.86e-6, gnorm=0.000608]
CG: 64%|######4 | 32/50 [00:04<00:02, 6.77it/s, ldiff=4.77e-7, gnorm=0.000602]
CG: 66%|######6 | 33/50 [00:04<00:02, 6.76it/s, ldiff=4.77e-7, gnorm=0.000602]
CG: 66%|######6 | 33/50 [00:05<00:02, 6.76it/s, ldiff=1.43e-6, gnorm=0.000545]
CG: 68%|######8 | 34/50 [00:05<00:02, 6.78it/s, ldiff=1.43e-6, gnorm=0.000545]
CG: 68%|######8 | 34/50 [00:05<00:02, 6.78it/s, ldiff=0, gnorm=0.00052]
CG: 70%|####### | 35/50 [00:05<00:02, 6.79it/s, ldiff=0, gnorm=0.00052]
CG: 70%|####### | 35/50 [00:05<00:02, 6.79it/s, ldiff=1.43e-6, gnorm=0.000506]
CG: 72%|#######2 | 36/50 [00:05<00:02, 6.78it/s, ldiff=1.43e-6, gnorm=0.000506]
CG: 72%|#######2 | 36/50 [00:05<00:02, 6.78it/s, ldiff=2.86e-6, gnorm=0.000459]
CG: 74%|#######4 | 37/50 [00:05<00:01, 6.76it/s, ldiff=2.86e-6, gnorm=0.000459]
CG: 74%|#######4 | 37/50 [00:05<00:01, 6.76it/s, ldiff=4.77e-7, gnorm=0.000427]
CG: 76%|#######6 | 38/50 [00:05<00:01, 6.76it/s, ldiff=4.77e-7, gnorm=0.000427]
CG: 76%|#######6 | 38/50 [00:05<00:01, 6.76it/s, ldiff=9.54e-7, gnorm=0.000426]
CG: 78%|#######8 | 39/50 [00:05<00:01, 6.77it/s, ldiff=9.54e-7, gnorm=0.000426]
CG: 78%|#######8 | 39/50 [00:05<00:01, 6.77it/s, ldiff=9.54e-7, gnorm=0.000401]
CG: 80%|######## | 40/50 [00:05<00:01, 6.77it/s, ldiff=9.54e-7, gnorm=0.000401]
CG: 80%|######## | 40/50 [00:06<00:01, 6.77it/s, ldiff=1.91e-6, gnorm=0.000359]
CG: 82%|########2 | 41/50 [00:06<00:01, 6.75it/s, ldiff=1.91e-6, gnorm=0.000359]
CG: 82%|########2 | 41/50 [00:06<00:01, 6.75it/s, ldiff=1.91e-6, gnorm=0.000333]
CG: 84%|########4 | 42/50 [00:06<00:01, 6.75it/s, ldiff=1.91e-6, gnorm=0.000333]
CG: 84%|########4 | 42/50 [00:06<00:01, 6.75it/s, ldiff=4.77e-7, gnorm=0.000333]
CG: 86%|########6 | 43/50 [00:06<00:01, 6.75it/s, ldiff=4.77e-7, gnorm=0.000333]
CG: 86%|########6 | 43/50 [00:06<00:01, 6.75it/s, ldiff=1.43e-6, gnorm=0.000321]
CG: 88%|########8 | 44/50 [00:06<00:00, 6.73it/s, ldiff=1.43e-6, gnorm=0.000321]
CG: 88%|########8 | 44/50 [00:06<00:00, 6.73it/s, ldiff=4.77e-7, gnorm=0.000298]
CG: 90%|######### | 45/50 [00:06<00:00, 6.73it/s, ldiff=4.77e-7, gnorm=0.000298]
CG: 90%|######### | 45/50 [00:06<00:00, 6.73it/s, ldiff=4.77e-7, gnorm=0.000299]
CG: 92%|#########2| 46/50 [00:06<00:00, 6.73it/s, ldiff=4.77e-7, gnorm=0.000299]
CG: 92%|#########2| 46/50 [00:06<00:00, 6.73it/s, ldiff=1.91e-6, gnorm=0.000292]
CG: 94%|#########3| 47/50 [00:06<00:00, 6.73it/s, ldiff=1.91e-6, gnorm=0.000292]
CG: 94%|#########3| 47/50 [00:07<00:00, 6.73it/s, ldiff=4.77e-7, gnorm=0.000289]
CG: 96%|#########6| 48/50 [00:07<00:00, 6.74it/s, ldiff=4.77e-7, gnorm=0.000289]
CG: 96%|#########6| 48/50 [00:07<00:00, 6.74it/s, ldiff=4.77e-7, gnorm=0.000274]
CG: 98%|#########8| 49/50 [00:07<00:00, 6.65it/s, ldiff=4.77e-7, gnorm=0.000274]
CG: 98%|#########8| 49/50 [00:07<00:00, 6.65it/s, ldiff=1.43e-6, gnorm=0.000264]
CG: 100%|##########| 50/50 [00:07<00:00, 6.68it/s, ldiff=1.43e-6, gnorm=0.000264]
Reconstruction shape: torch.Size([128, 128])
Ground truth shape: torch.Size([128, 128])
Relative reconstruction error: 0.1621
Results Summary
# Print summary statistics
print("=== MRI Reconstruction Summary ===")
print(f"Image size: {image_size}")
print(f"Number of coils: {num_coils}")
if use_cartesian:
print(f"Trajectory: Cartesian")
else:
print(f"Trajectory: Radial ({num_spokes} spokes × {num_readouts} readouts)")
print(f"Total k-space samples: {len(locs)}")
print(f"Undersampling factor: {(image_size[0] * image_size[1]) / len(locs):.2f}×")
print(f"Noise level: {noise_level}")
print(f"Relative reconstruction error: {recon_error:.4f}")
Out:
=== MRI Reconstruction Summary ===
Image size: (128, 128)
Number of coils: 8
Trajectory: Radial (37 spokes × 256 readouts)
Total k-space samples: 9472
Undersampling factor: 1.73×
Noise level: 1e-05
Relative reconstruction error: 0.1621
Total running time of the script: ( 0 minutes 25.121 seconds)
Download Python source code: mri_reconstruction.py
